Features
- Integral iGyro: Triple-axis gyro system with attitude assist function
- Expanded setup assistant for ultra-simple operation
- Special regulatory algorithm for fixed-wing model aircraft
- Six independent gyro outputs for: 2x ailerons, 2x elevators, 2x rudders
- Special thrust vector support
- GPS-regulated gyro gain
- Extremely accurate six-axis MEMS sensor
- Integral Delta and V-tail mixer
- Door sequencer: freely programmable outputs with set-up assistant
- Servo-Match function: servo centre, end-points and reverse for all 15 servo outputs
- SRS: Serial Receiver System provides the facility to use receivers with serial interface: P²BUS, S-Bus, M-Link, EX-Tele, DSM2/DSMX, X-BUS and HoTT
- Unrestricted channel assignment for all 15 PowerBox outputs

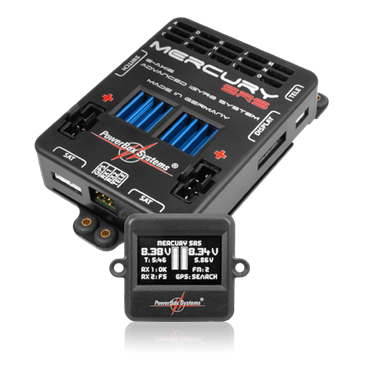

- Graphic OLED screen with 128×64 pixels
- Extremely user-friendly menu-based programming using the SensorSwitch
- 15 channels
- Signal amplification and interference suppression for all 15 outputs
- Flight recorder, recording of lost frames and fail-safe events
- Variable frame rate, range 12ms – 21ms
- 16-bit processors for fast, high-resolution signal processing
- Double-regulated output voltages for receivers and servos
- regulated output voltage 5.9V or 7.4V
- Connection facilities for P²BUS, S-Bus, M-Link, EX-Tele, DSM2/DSMX, X-BUS und HoTT downlink bus systems
- Direct transmission of the battery informations, receiver data and GPS data to the transmitter
- Separate voltage display for each battery
- Minimum value memory alerts the user to voltage collapses
- Large-area heat-sinks for high regulator performance
- Regulator monitoring, regulator error indicator
- Support for four battery types: LiPo/LiIon, NiMh/NiCd, LiFePo
- Suppression of any servo feedback currents which may occur
- Updateable with PowerBox Systems USB Interface or BlueCom adapter
Technical Data
| Operating voltage | 4.0V – 9.0V |
| Power supply | 2S LiPo/LiIon, 2S LiFePo, 5S NiCd/NiMH |
| Current drain Power-on state | 99mA (with OLED) |
| Current drain Standby | 3µA |
| Maximum load current | Peak 2x20A |
| Drop-out voltage | 0.3V |
| Output voltage | 5.9V or 7.4V regulated |
| Signal input | serial |
| Supported RC systems | PowerBox, Futaba, MPX, Jeti, Spektrum, JR, Graupne |
| Receiver redundancy | SRS |
| Channels | 15 (18) |
| Servo sockets | 15 |
| Programmable servo outputs | 15 |
| Servo signal resolution | 0.5µs |
| Signal frame rate | 12ms, 15ms, 18ms, 21ms |
| Integral gyro system | iGyro |
| Gyro regulation | Attitude assist and Normalmode |
| Gyro sensor type | MEMS |
| Number of sensor axes | 6 |
| Screen | OLED |
| Integral door sequencer | yes |
| Supported telemetry systems | P²BUS, S-Bus, M-Link, EX-Tele, DSMX, X-BUS, HoTT |
| Dimensions | 93 x 67 x 19 mm |
| Weight | 85g |
| Weight Sensor Switch | 15g |
| Weight of LCD screen | 15g |
| Temperature range | -30°C bis +75°C |
